Impulsive Images
Please Log In for full access to the web site.
Note that this link will take you to an external site (https://shimmer.mit.edu) to authenticate, and then you will be redirected back to this page.
Pixel values for three images (f_1[r,c], f_2[r,c], and f_3[r,c]) are shown below for |r|\le2 and |c|\le2. Pixel values outside the indicated regions are zero.

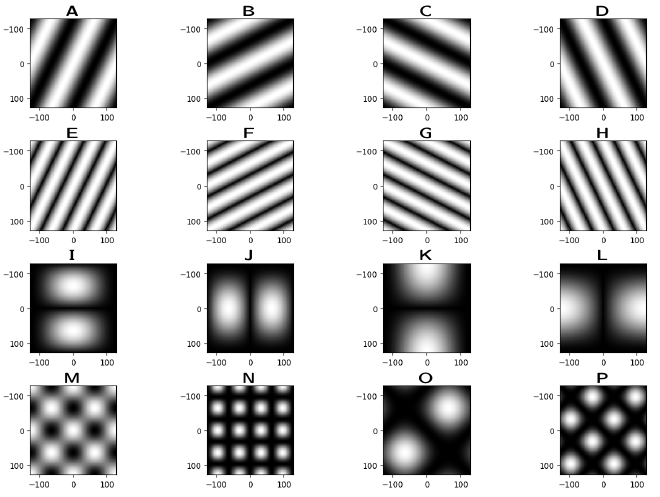

Each of the panels below show the magnitude of a 2D DFT calculated for -128{\le}r,c{\lt}128 and displayed with black and white representing the minimum and maximum magnitude in each image. Determine which of the panels below shows the magnitude of the 2D DFT for each of the images shown above, and enter its label (A-P) in the corresponding box above.
Upload your solution to this problem (including parts a, b, and c) as a single pdf file.
Your most recent submission before the problem deadline is the one that will be graded.
