Time-Frequency Patterns

The questions below are due on Thursday May 08, 2025; 02:00:00 PM.

You are not logged in.

Please Log In for full access to the web site.
Note that this link will take you to an external site (https://shimmer.mit.edu) to authenticate, and then you will be redirected back to this page.

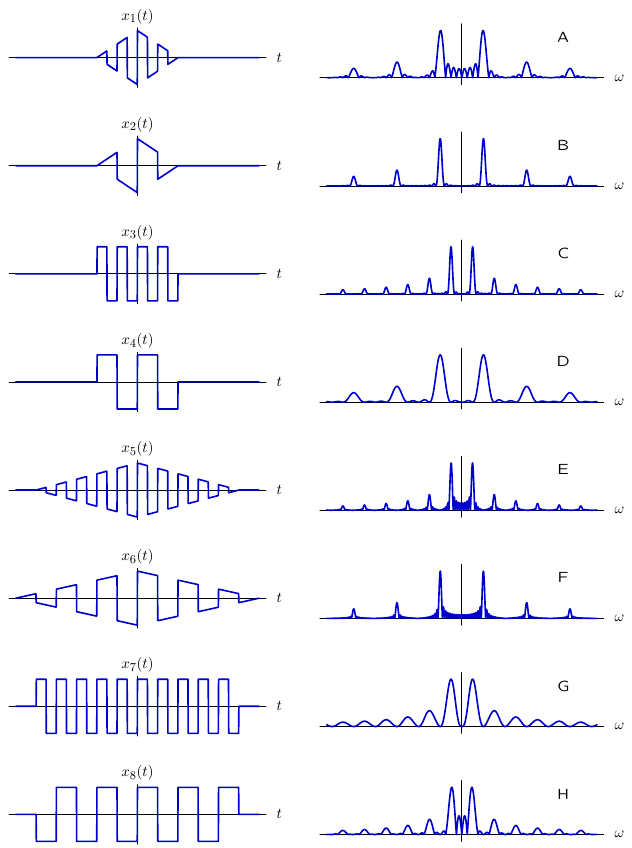

Eight time waveforms are shown in the left panels below. The corresponding Fourier transform magnitudes are shown in the right panels, however, the order has been shuffled. For each signal on the left, find the corresponding CTFT magnitude plot on the right.

Please upload a single pdf file that contains your answers to all parts of this problem:

 No file selected
